Four row cylindrical roller bearings
FV "Kombi rolling mill bearings" are employed as work roll bearings on Four-high stands of both hot and cold rolling mills and of cold sheet rolling mills. Increased demands with respect to the quality and accuracy of the rolled product as well as further developments in the production process for sheet steel involving the introduction of contra-bending and axial displacement of the rolls have meant that work roll bearing loads have been considerably increased. This means that the four-row tapered roller bearings normally used as work roll bearings can often not meet the requisite life demands because of the much heavier radial and axial loads applied. Compared with standard four-row tapered roller bearings, this Kombi rolling mill bearings design can withstand greater rolling forces.
Model list Of Combined Cylindrical Roller/Tapered Roller Bearings

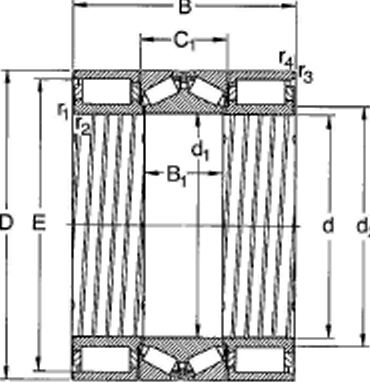

FV BEARING | Dimensions ( mm ) | Mass | Designation |
CODE | d | D | B | d1 | d2 | B1 | C1 | E | r1 r2 | r3 r4 | (Kg) |
|
|
| ≈ |
| min | min |
| Replaced SKF |
BVNB328735/HA1 | 187.325 | 269.875 | 211.138 | 189.5 | 206 | 70 | 84.14 | 253 | 2 | 4 | 40 | BVNB 328735/HA1 |
BVNB328605/HA1 | 241.478 | 349.148 | 240 | 243.5 | 268 | 74 | 90 | 327.5 | 2 | 4 | 73.5 | BVNB 328605/HA1 |
BVNB328587/HA1 | 266.7 | 355.6 | 240 | 268.7 | 296 | 72 | 90 | 337 | 2 | 2 | 67.5 | BVNB 328587/HA1 |
BVNB32900S/HA1 | 290 | 415 | 290 | 292 | 325 | 108 | 128 | 390 | 1.5 | 3 | 130 | BVNB 329005/HA1 |
BVNB328584/HA1 | 333.375 | 457.098 | 200 | 336 | 380 | 110 | 130 | 432.5 | 3 | 3 | 135 | BVNB 328584/HA1 |
BVNB328733/HA1 | 385.762 | 514.35 | 317.5 | 388 | 410 | 125 | 145.5 | 468.5 | 2 | 4 | 190 | BVNB 328733/HA1 |
BVNB328753/HA1 | 406.4 | 546.1 | 330 | 408.4 | 440 | 90 | 112.9 | 522 | 2 | 4 | 220 | BVNB 328753/HA1 |
BVNB328883/HA1 | 406.4 | 546.1 | 330 | 408.4 | 440 | 96 | 120 | 520 | 2 | 4 | 215 | BVNB 328883/HA1 |
BVNB328407/HA1 | 406.4 | 546.1 | 330 | 408.4 | 434 | 125 | 150 | 520 | 2 | 4 | 220 | BVNB 328407/HA1 |
BVNB328407A/HA1 | 406.4 | 546.1 | 330 | 408.4 | 434 | 125 | 150 | 520 | 2 | 4 | 207 | BVNB 328407 A/HA1 |
BVNB328540/HA1 | 431.8 | 571.5 | 280 | 434 | 477 | 105 | 130 | 544 | 5 | 2.1 | 200 | BVNB 328540/HA1 |
BVNB328540A/HA1 | 431.8 | 571.5 | 280 | 434 | 477 | 105 | 130 | 544 | 5 | 2.1 | 190 | BVNB 328540A/HA1 |
BVNB328607/HA1 | 431.8 | 571.5 | 280 | 404 | 460 | 105 | 130 | 543 | 2 | 4 | 240 | BVNB 328607 HA1 |
BVNB328607A/HA1 | 431.8 | 571.5 | 280 | 434 | 460 | 105 | 130 | 543 | 2 | 4 | 210 | BVNB 328607 A/HA1 |
BVNB328601/HA1 | 457.2 | 596.6 | 280 | 459.2 | 482 | 105 | 130 | 568 | 2 | 4 | 210 | BVNB 328601/HA1 |
BVNB328362/HA1 | 462.45 | 616 | 386 | 464 | 491 | 136 | 150 | 585 | 2 | 4 | 335 | BVNB 320362/HA1 |
BVNB328362A/HA1 | 462.45 | 616 | 386 | 464 | 491 | 136 | 150 | 685 | 2 | 4 | 310 | BVNB 320362 A/HA1 |
BVNB328441/HA1 | 489.026 | 634.949 | 320 | 491 | 536 | 120 | 148 | 605 | 5 | 3 | 200 | BVNB 328441/HA1 |
BVNB328360/HA1 | 520 | 690 | 430 | 522 | 564 | 160 | 180 | 664 | 2 | 4 | 365 | BVNB 328360/HA1 |
BVNB328360A/HA1 | 520 | 690 | 430 | 522 | 554 | 160 | 180 | 654 | 2 | 4 | 365 | BVNB 328360 A/HA1
|
