Sendzimir mill bearing, Back-up Roller bearing - (Replace SKF)

2021-06-09 15:26:03 liyulong126

rolling mill bearings, Roll neck bearings, Tapered roller bearings, Spherical roller bearings

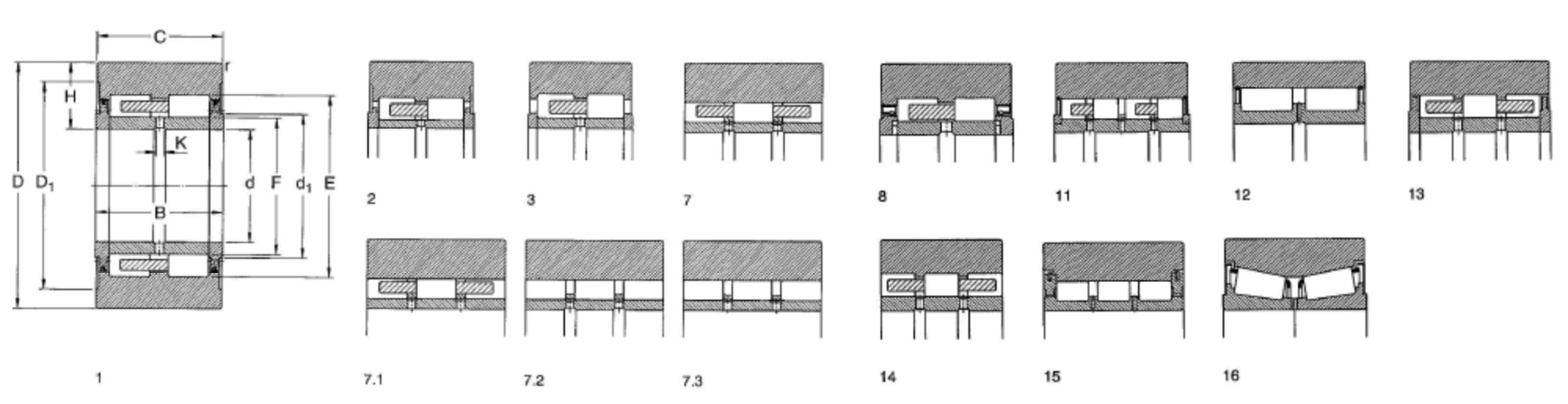

BEARING CODE	DIMENSIONS (mm)												Mass	Design	Model
BEARING CODE	d	D	B	C	H	d1	D1	E	F	r	K	N 1)	(Kg)	Design	Model
BNTB 326006/HB1	50	110	56	55	30	66	76.5	80.6	60.6	1	4	3	2.9	1.1	BNTB 326006/HB1
BNTB 322358	50	120	52	51.2	32.5	70	98	85.3	63.3	1	4	3	3.4	2	BNTB 322358
BNTB 326250/HB1	50	120	52	51.?	32.5	70	84.2	89.1	65.1	1	3	3	3.5	3	BNTB 326250/HB1
396040	50	120	52.2	52	32.5	70	—	77	66	1	1.6	2	350	4	396040
315287	60	165	7A	74	52.5			108	76	1	5	4	10	5	315287
BNTB316538A/HB1	65	165	70	70	50			116.5	76.5	0.6	4	6	9.5	6	BNTB 316538 A/HB1
BC2B326259/HB1	70	160	90	89.2	45	88	130	116	86	2	5	3	10	1	BC2B 326259/HB1
BC2B326259A/HB1	70	160	90	89.2	45	88	130	116	86	2	5	3	10.5	1.1	BC2B 326259 A/HB1
315268E/HA1	70	160 02	90	90	45			108.8	82.8	1	5	2x4	10	7	315260 E/HA1
315268D/HA1	70	160.02	90	90	45			108.8	82.8	1	5	2x4	10.5	7.2	315268 D/HA1
315268B	70	160.02	90	90	45			108.8	82.8	1	5	2x4	10.5	7.3	315268 B
315268C	70	160.02	90	90	4S			108	82.8	1	5	2x4	10.5	7.3	315268 C
BC2B 326265 HB1	70	165	90	8B	47.5	94	110	118.7	86.7	2	8	6	11	6	BC2B 326265/HB1
BC2B 319343 C	90	220	94	94	65	-		160	108	1	7	6	21.5	6	BC2B 319343 C
BC2B 319343 A	90	220	94	94	65			160	108	1	7		21	6.1	BC2B 319343 A
316737B	90	220	120	120	65	130	150	159	121	1	5	2x6	26.5	9	316737 B
316737A	90	220	120	120	65	130	150	159	121	1	5	2x6	27	9.1	316737 A
315395A	90	220.02	120	120	65	-	-	156.3	120.3	1	5	2x6	27.5	7.3	315395A
BNTB 322869 B/HB1	100	225	120	119	62.5	124	183	163.5	119.5	2	6	6	28	1	BNTB 322869 B/HB1
BNTB322869/HB1	100	225	120	119	62.5	124	183	163.5	1195	2	6	6	28	1.1	BNTB 322869/HB1
BNTB322869D/HB1	100	225	120	119	62.5	128	103	163.5	119.5	2	6	6	28	2	BNTB 322869 D/HB1
BNTB322869C/HB1	100	225	120	119	62.5	128	183	163.5	119.5	2	6	6	28	2.1	BNTB 322869 C/HB1
315018C	100	225	120	120	62.5			156.3	120.3	1	5	6	24.5	7.1	315018 C
315018A	100	225	120	120	62.5			156.3	120.3	1	5	6	20	7.3	315018 A
BNTB322246/HB1	100	225	120	120	62.5	127	183	167.7	115.7	2	4	6	26.5	10	BNTB 322246/HB1
BC2B322564	110	260	98	96	75			190	134	1	6	6	31	6	BC2B 322564
BC2B319531	110	260	125	125	75			190	134				40	6	BC2B 319531

rolling mill bearings, Roll neck bearings, Tapered roller bearings, Spherical roller bearings

BEARING CODE	DIMENSIONS (mm)												Mass	Design	Model
BEARING CODE	d	D	B	C	H	d1	D1	E	F	r	K	N 1)	(Kg)	Design	Model
BT2B 332573/HA1	130	300	172.496	169.321	85	178	252			3.3	8	6	645	16	BT2B 332573 C
BC4B 635292	130	300.02	160	159.5	85 01	170		209.5	159.5	1	4	2x8	66	11	BC4B 635292
BNTB 320443	130	300.02	160	159.5	85.01	174	213	222.5	162.5	1	6.5	8	64.5	3	BNTB 320443
467029 A/W82	130	300.02	160	159.5	85.01	164		217	153	1	6	6	64.5	12	467029 A/W82
319028	130	300.02	160	159.5	85.01			218.4	159.4	1	6.5	6	66.5	7.3	319028
BC2B 320656	130	300.02	161.5	160.5	66.01	170	200	219.3	151.3	1	8	6	63.5	8	BC2B 320656
314833 BA	130	300.02	172.64	172.64	85.01			218.4	159.4	2.7	6.5	2X6	72.5	7.1	314833 BA
314633 C	130	300.02	172.64	172.64	86.01			218.4	159.4	2.7	6.5	2x6	72.5	7.1	314833 C
314833 D	130	300.02	172.64	172.64	85.01			218.4	159.4	3.5	6.5	2x6	72.5	7.1	314833 D
315019 A	130	300.02	172.64	172.64	85.01			218.4	159.4	2.7	6.5	2x6	71.5	7.3	315019 A
319019 B	130	300.02	172.64	172.64	85.01			218.4	15fi.4	2.7	6.5	2x6	71.5	7.3	315019 B
BC2B 320432 D	130	300.02	172.66	171.6	85.01	166	243	219.3	151.3	3	8	6	69.5	1	BC2B 320432 D
BC2B 320432 A	130	300.02	172.66	171.6	85.01	166	243	219.3	151.3	3	8	6	69.5	1	BC2B 320432 A
BC2B 320432 B	130	300.02	172.65	171.6	65.01	166	243	219.3	151.3	3	8	6	69.5	1	BC2B 320432 B
BC2B 320432 C	130	300.02	172.65	171.6	85.01	165	243	2193	151.3	3	8	6	69.5	2	BC2B 320432 C
BNTB 322758/HB1	180	406.4	171.04	170	113.2	230	331	298.5	214.5	3	8	6	130	2	BNTB 322756/HB1
BNTB 326074 B/HB1	180	406.4	224	223	113.2	230	331	298.5	214.5	3	8	6	170	1	BNTB 326074 B/HB1
BNTB 326074/HB1	180	406.4	224	223	113.2	230	331	206.5	214.5	3	8	6	170	2	BNTB 326074/HB1
BNTB 322891/HB1	180	406.4	224	224	113.2	226	300	277.4	213.4	2	6	2x6	175	15	BNTB 322891/HB2
BC3B 319809	180	406.42	171	170	113.2	240	—	293.3	217.3	1	8	2x6	130	13	BC3B 319809
BC3B 320899	180	406.42	171	171	113.2			287.4	217.4	1	8	2x6	130	7	BC3B 320699
BC3B 326277/HB1	180	406.42	171	171	113.2			293.4	217.4	2.7	B	2x6	130	14	BC3B 326277/HB1
316388C	180	406.42	171	171	113.2			293.4	217.4	1	8	2x6	130	7	316388 C
316388AV	180	406.42	171	171	113.2			293.4	217.4	1	8	2x6	130	7.2	316388 AV
315020 A	180	406.42	217	217	113.2			293.4	217.4	1	8	2x6	165	7.1	315020 A
315515A	180	406.42	224	224	113.2			293.4	217.4	1	8	2x6	170	7.1	315515 A
315515 B	180	406.42	224	224	113.2			293.4	217.4	1	8	2x6	170	7.1	315515 B
BT2B 332618 A	180	406,425	223.83	220.666	113.2	234	340	-	-	3.3	12	4	152	16	BT2B 332618 A

label: Sendzimir mill bearing Back-up bearings
