Backing Bearings for Multi-Roll Rolling Cluster Mills - (Replace NSK)

2021-06-08 18:24:41 liyulong126

NSK Sendzimir mill bearing model list

A list of available bearings can be found in the following dimensions table. For any dimensions which are not on the table, please consult FV.

NSK Sendzimir rolling mill bearing model list

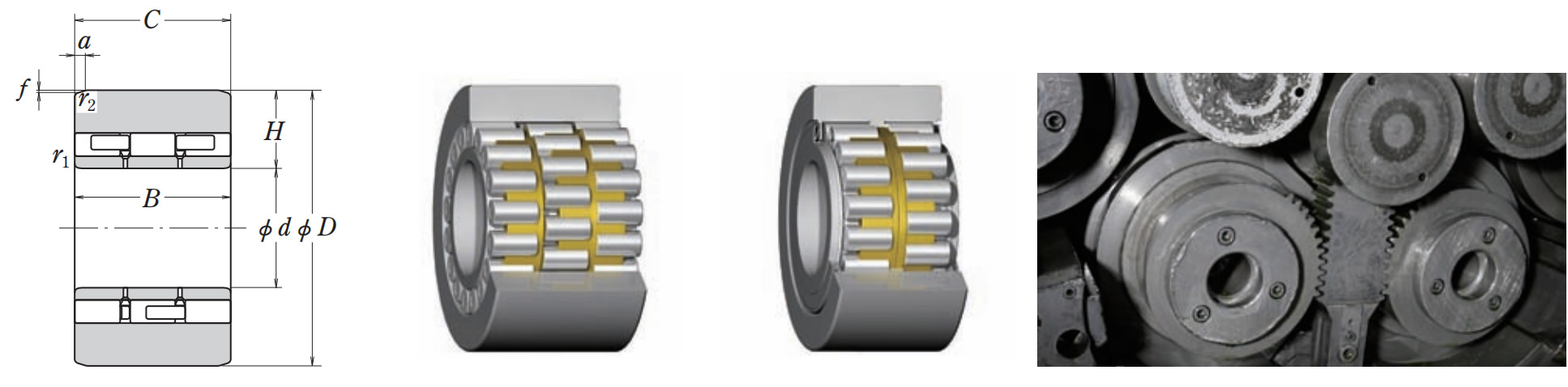

Bearing Designation	Boundary Dimensions (mm)						Basic Load Ratings (kN)		Permissible Radial Load (kN)	Figure	Radial Thickness When Delivered	Mass (kg)
	d	D	B	C	r1	r2	Basic Load Ratings (kN)		Permissible Radial Load (kN)	Figure	Radial Thickness When Delivered	Mass (kg)
					min.		Cr	Cor	Cu		H (mm)	approx.
2S31Z-5	31.75	76.2	46.23	45.85	1.5	0.8	94.5	174	91.8	6	22.2	1.3

2U50-4 *2U50-4g3	50	120	80	80	1.5	1.5	257	385	147	9	34.976	5.2
2U50-6 *2U50-6g3	50	120	85	85	1	1.5	305	435	113	9	34.984	5.3

S55-2 *S55-2g5	55	120	26	26	1.6	1.6	74.5	142	90.2	5	32.5	1.7
S55-1 S55-1g5	55	120	52.2	52	1.6	1.6	159	375	185	5	32.485	3.4
2L55-1	55	120	52.2	52	1	1	186	298	115	4	32.5	3.2

2U60-4	60	160	95	95	1.1	1.5	400	590	290	9	49.984	11.5

2U62-1	62	155	90	90	1.5	1	355	530	247	10	46.484	9.9
3U62-1	62	155	110	110	1.5	1	405	620	297	2	46.484	12.1

3PL70-1	70	160	90	90	1.1	1	410	745	303	1	45	10.7

2U90-18 *STF2U90-18g4	90	220	95	95	1.1	2	590	880	347	8	64.982	20.8
2U90-13	90	220.02	96	94	1.5	1.5	520	730	333	8	65	20.5
2U90-11	90	220	120	119	1	3	685	1 020	411	8	65	26
2U90-17	90	220	122	119	1	3	685	1 020	410	8SP	65	27
3U90-1	90	220	120	120	1	2	675	1 260	494	2	64.98	27.2
3U90-4	90	220	130	130	1	2	680	1 090	499	2SP	64.982	28.7
2U90-9	90	230	100	100	2.5	2	645	990	322	10SP	69.98	24.4

2PL100-3	100	225	80	80	2	1.5	535	925	366	3	62.47	18.4
2U100-14 *2U100-14g3	100	225	120	119	2	3	550	1 000	586	8	62.5	27.2
3PL100-1A	100	225	120	120	2	2	715	1 350	542	1	62.47	27.5
2U100-15	100	260	130	130	2	2	950	1 580	617	10SP	79.97	41.5

3U110-4	110	280	165	165	2.5	2	1 120	1 880	818	2	84.965	60.2

3U115-3	115	260	140	140	1.1	2	940	1 660	613	2	72.47	42.1

2U120-15	120	280	165	165	2.5	2	1 190	2 060	802	9	79.965	58
3U120-4	120	300	160	160	2	2	1 180	1 960	847	2SP	89.966	66.7
2U120-14	120	350	165	165	2.5	2	1 370	2 220	1 140	9	114.965	98.5

2U130-32	130	300	132	129	2	4	1 040	1 580	590	8SP	85	52.3
2U130-32g2 STF2U130-32g3
2U130-34	130	300.02	150	149	2	1.1	1 100	1 850	732	9SP	85.01	60.9
3PL130-2C *3PL130-2Cg2	130	300	160	159.5	2		1 470	2 670	799	1	84.95	66.6
3PL130-1C	130	300	172.64	172.64	2	4	1 580	2 930	862	1	84.95	71.8
3PL130-1F	130	300	172.64	172.64	2	4	1 580	2 930	862	1SP	84.95	72
3PL130-1Fg2 STF3PL130-1Fg3
3PL130-1Y	130	300.02	172.64	172.64	2	3	1 580	2 930	862	1	84.965	72.1
3PL130-7B	130	300	172.64	172.64	2	4	1 580	2 930	862	1	84.95	72
2U130-26	130	300	172.644	172.644	2	4	1 370	2 440	854	9	84.955	69.1
2U130-36 *2U130-36g2	130	300	172.644	172.644	3	4	1 240	2 150	808	11	84.955	68.8
2U130-16B	130	300	172.64	170	2	2	1 240	2 150	800	11	84.95	71.2
3U130-2	130	300	172.64	171.6	2	4	1 320	2 300	866	12	84.95	69.4
2U130-29B	130	350	175	175	2.5	2	1 450	2 410	1 230	9	109.965	102

2U179Z-3	179.984	406.4	224	220.66	3	3.3	1 950	3 550	1 460	11	113.205	168
2U179Z-14 *STF2U179Z-14gA5	179.984	406.43	224.25	220	3	4	2 250	4 250	1 570	11	113.181	161

3PL180-3B	180	406.42	171.04	171.04	2.1	4	2 060	3 800	1 220	1	113.155	129
3PL180-3E	180	406.42	171.04	171.04	2.1	4	2 060	3 800	1 220	1	113.155	129
2U180-3 *STF2U180-3g3	180	406.42	171.04	171.04	0.6	1	1 900	3 300	1 150	9	113.16	125
2U180-5	180	406.42	171.04	170	2	3	1 650	2 850	1 220	8	113.2	124
2U180-5A	180	406.42	171.04	170	2	3	1 650	2 850	1 220	8	113.2	124
2U180-7 *STF2U180-7g3	180	406.42	171.04	171.04	3	4	1 560	2 660	1 150	8	113.155	123
2U180-8	180	406.42	176	170	2	3	1 650	2 850	1 220	8	113.2	128
3PL180-1B *3PL180-1Bg2	180	406.4	217	217	2.1	1.5	2 550	5 000	1 560	1	113.16	164
3U180-2 *3U180-2g2	180	406.4	224	220	2.1	1.5	2 050	3 750	1 580	12	113.16	162
3U180-3	180	406.4	224	220	2.1	1.5	2 050	3 750	1 580	12	113.205	162
3PL180-2A *3PL180-2Ag2	180	406.42	224	224	2.1	1.5	2 610	5 150	1 610	1	113.155	169
2U180-4 *STF2U180-4g3	180	406.42	224	224	0.6	1	2 360	4 400	1 510	9	113.16	164

Sendzimir roll mill bearings, back-up bearings from WWW.FV-BEARING.COM

rolling mill bearings, Roll neck bearings, Tapered roller bearings, Spherical roller bearings

label: Sendzimir mill bearing Back-up bearings
