Best Solution for Intermediate Roll and Work Roll Bearings at Present

2020-05-26 16:45:28 FV Bearing

rolling mill bearings, Roll neck bearings, Tapered roller bearings, Spherical roller bearings

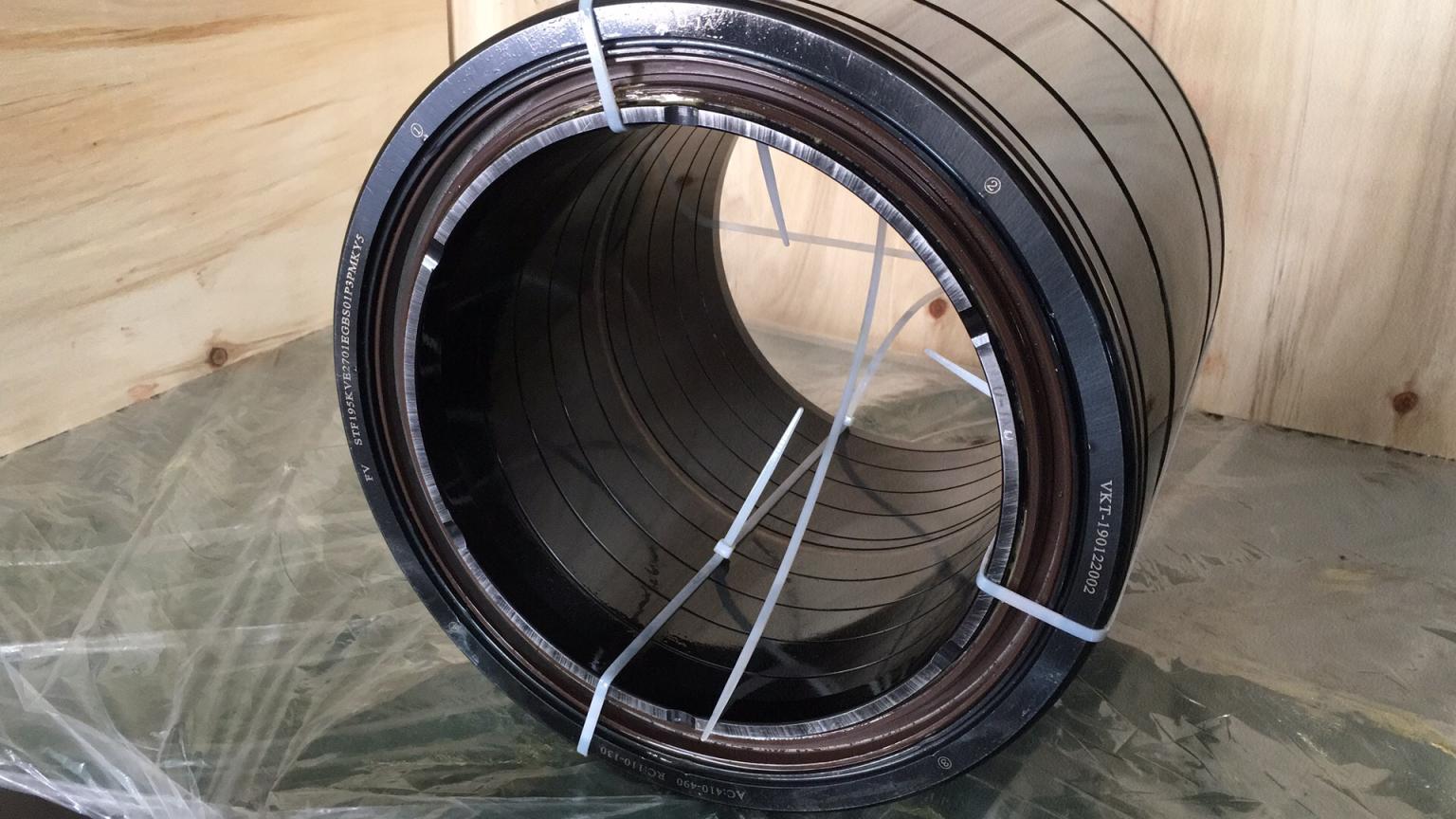

Sealed type, 4-row tapered roller bearing Designation (STF -)	Design (fig.)	Dimensions (mm)						Basic load ratings (KN)		Wt (Kg)
	Design (fig.)	d	D	B	C	ri （min）	r（min）	Cr	Cor	approx.
101KVE2051	3-2	101.6	200.025	320	320	1	3	1450	2420	47.8
150KVE2101E	3-1	150	210	240	240	1	2.5	990	2270	26.1
170KVS2401Eg	5	170	240	175	175	2.5	2.5	1010	2000	23
187KVE2651E	3-1	187.325	269.875	230	230	2	3.3	1460	3200	43.6
215KVS2851Eg	5	215.9	288.925	177.8	177.8	0.8	3.3	1070	2350	38
216KVS3351Eg	5	216.103	330.2	263.525	269.875	1.5	3.3	2290	4550	77
220KVE2902	4-1	220	295	315	315	1	2.5	1410	3450	61.2
220KVE2901	4-1	220	295	335	335	1	2.5	1410	3450	65
220KVE3001E	3-2	220	300	270	270	2.5	2.5	1650	4000	56.5
220KVE3201E	3	220	320	290	290	1.5	2.5	1970	4500	78.7
220KVS3301Eg	5	220	330	260	260	4	3	2330	4800	76
225KVE3201E	3	225	320	230	230	1	2	1510	3300	59.9
228KVE4052E	3	228.6	400.05	296.875	296.875	3.3	3.3	2410	4250	161
234KVS3251Eg	5	234.95	327.025	196.85	196.85	1.5	3.3	1550	3200	49
240KVE3202E	3	240	320	250	250	3	3	1510	3700	56.3
240KVE3301E	3	240	338	248	248	2	3	1820	4000	70.6
240KVE3302E	3	240	338	290	290	2	3	2120	5000	82.6
244KVS3251Eg	5	244.475	327.025	193.68	193.68	1.5	3	1450	3300	43
245KVS3402Eg	5	245	345	310	310	2	3	2700	6650	85
250KVE3601AE	3	250	365	270	270	2.5	3	2210	4650	96
250KVE3601E	3-1	250	365	270	270	2.5	3	2210	4650	96
254KVS3552Eg	5	254	358.775	269.875	269.875	1.5	3.3	2420	5500	86
260KVS3601Eg	5	260	365	340	340	2.7	4	2960	7350	110
260KVS3651Eg	5	260	365	340	340	2.5	4	2960	7350	110
260KVS4251Eg	5	260.35	422.275	314.325	317.5	6.4	3.3	3600	7050	170
266KVS3551Eg	5	266.7	355.6	230.188	228.6	1.5	3.3	1960	4600	62
276KVS3952Eg	5	276.225	393.7	269.875	269.875	1.5	3.3	2720	6100	105
279KVS3952Eg	5	279.4	393.7	269.875	269.875	1.5	6.4	2720	6100	102
279KVE3951E	3	279.4	393.7	270.63	269.875	1.5	6.4	2290	5150	105
279KVS3954Eg	5	279.4	393.7	320	320	1.5	6.4	3100	7350	120
279KVE4101	4	279.4	410	420	420	1	6.4	3300	7400	190
280KVE3801E	3	280	380	290	290	1.5	3	2230	5350	96.2
280KVE3901E	3-4	280	395	340	340	1.5	2.5	2950	7050	133
280KVE3902E	3	280	395	340	340	1.5	2.5	2950	7050	133
280KVE4101E	3-4	280	410	268	268	1.5	6.4	2330	4600	121
280KVE4102E	3-1	280	412	340	340	3	3	3300	7400	156
290KVS4001Eg	5	290	400	346	346	3	4	3250	8400	112
304KVS4351Eg	5	304.648	438.048	280.99	279.4	3.3	3.3	3100	6750	132
304KVE4351E	3-2	304.648	438.048	281.74	279.4	3.3	3.3	2630	5600	140
304KVS4151Eg	5	304.8	419.1	269.875	269.875	1.5	6.4	2850	6550	111
304KVS4152Eg	5	304.902	412.648	266.7	266.7	1.5	3.3	2760	6500	100
310KVS4301Eg	5	310	430	310	310	3	3	3350	8200	140
310KVS4302Eg	5	310	430	350	350	2.7	3	3700	9550	155
317KVS4251Eg	5	317.5	422.275	269.875	269.875	1.5	3.3	2740	6750	100
317KVE4451E	3	317.5	447.675	367	367	2.5	3	3450	8100	184
343KVS4551Eg	5	343.052	457.098	254	254	1.5	3.3	2830	6700	110
343KVE4561E	3	343.052	457.098	299	299	1.5	3.3	2830	6950	137
355KVS4551Eg	5	355.6	457.2	252.412	252.412	1.5	3.3	2650	6750	98
395KVE5401E	3-1	395	545	360	360	2.5	5	3600	9050	255
406KVS5451Eg	5	406.4	546.1	288.925	288.925	1.5	6.4	3950	9450	184
406KVE5454E	4-1	406.4	546.1	346	346	0.5	6.4	2560	5800	231
420KVE5901E	3-1	420	590	395	375	2.5	5	3550	8200	332
440KVE5901E	4-1	440	590	510	510	4	4	5450	14300	396
440KVE6201E	3-1	440	620	454	454	4	6	6500	15700	435
450KVS5901Eg	5	450	595	368	368	4	5	5550	15000	272
457KVS5951Eg	5	457.2	596.9	276.22	279.4	1.5	3.3	4000	9850	206
460KVE5901E	3-1	460	590	470	470	2.5	5	4900	14100	322
480KVE6101A	4-2	480	615	435	435	3	5	4650	12800	323
480KVE6702E	4-1	480	678	574	574	3	5	8400	21500	662
482KVS6151Eg	5	482.6	615.95	330.2	330.2	4.3	6.4	4900	13500	235
482KVE6152E	3	482.6	615.95	330.2	330.2	4.3	6.4	3650	9650	243
482KVE6155E	3	482.6	615.95	419.1	402.05	2.3	6.4	4700	13600	302
482KVE6453E	3-5	482.6	647.7	417.512	417.512	3.3	6.4	5500	13800	392
488KVE6251E	4	488.95	622.3	365.125	365.125	3.8	6.4	3450	8950	272
490KVE6201A	4-2	490	625	435	435	3	5	4550	12500	329
509KVE6554E	3	509.948	654.924	377	379	1.5	6.4	4800	13000	321
520KVE7301E	3-1	520	735	535	535	5	6	8800	22700	726
558KVE7351E	3-3	558.8	736.6	540	540	3.3	6.4	8950	25300	625
595KVE8451E	3	595.312	844.55	615.95	615.95	1.5	6.4	12600	33000	1110
595KVE8452E	4	595.312	844.55	615.95	615.95	3.3	6.4	10900	27200	1110
609KVE7851E	3	609.6	787.4	361.95	361.95	1.5	6.4	5450	14400	452
711KVE9152A	3	711.2	914.4	387.35	317.5	3.3	6.4	6400	19300	585
711KVE9153E	3-1	711.2	914.4	410	410	3.3	6.4	7000	20100	681
711KVE9155E	3	711.2	914.4	425.45	387.35	8	6.4	6400	19300	675
785KVE1001E	4-1	785	1 015	700	700	4	6	13500	41000	1460
825KVE1101E	3	825.5	1 160	565	565	5	6	13900	33500	1890

label: Intermediate Roll Work Roll
